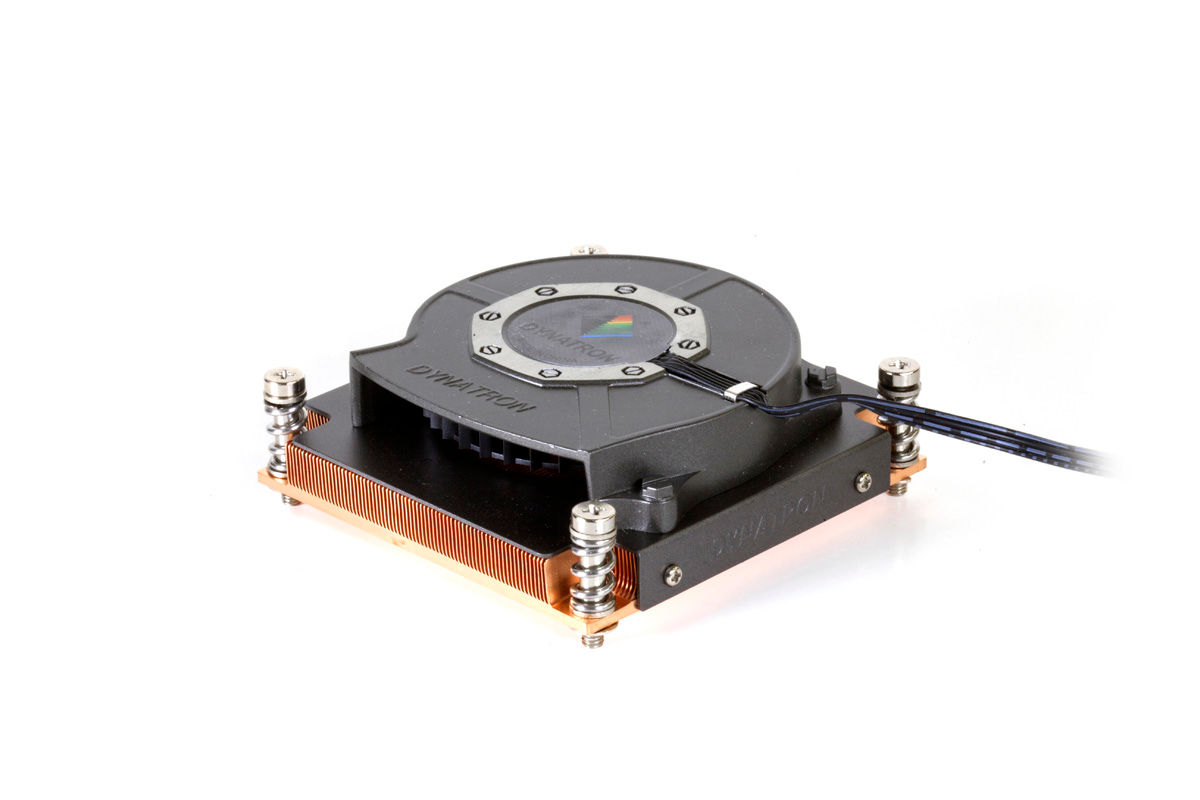

R18

R18

Aluminum 80x80x15mm blower with PWM function, Copper heatsink up to 165 Watts for 1U server solution.

  • Additional Information

    CPU Support

    Intel
    CPU Socket

    LGA 2011 (Square Type, 80mm x 80mm Mounting Pitch) / LGA 2066
    Solution

    1U Server
    Dimensions

    80.0 x 80.0 x 15.0 mm
    Weight

    480 g
    Material

    Copper Heatsink with Skiving Fins
    Fan Dimension

    80 x 80 x 15 mm
    Speed

    At Duty Cycle 20%: 1000 RPM
    At Duty Cycle 50%: 3500 RPM
    At Duty Cycle 100%: 6000 RPM
    Bearing

    2 Ball Bearing
    Rated Voltage

    12V
    Power

    At Duty Cycle 20%: 0.6 W
    At Duty Cycle 50%: 3.84 W
    At Duty Cycle 100%: 14.4 W
    Air Flow

    At Duty Cycle 20%: 6.5 CFM
    At Duty Cycle 50%: 11.2 CFM
    At Duty Cycle 100%: 19.1 CFM
    Noise Level

    At Duty Cycle 20%: 21.5 dBA
    At Duty Cycle 50%: 43.0 dBA
    At Duty Cycle 100%: 55.8 dBA
    Air Pressure

    At Duty Cycle 20%: 2.27 mm-H2O
    At Duty Cycle 50%: 18.56 mm-H2O
    At Duty Cycle 100%: 54.5 mm-H2O
    Lead Wire Pin Out

    Pin1- (-)
    Pin2- (+)
    Pin3- (Techometer/Signal output)
    Pin4- (PWM)

    *All product specifications and product images are subject to change without notice.
