K650

K650

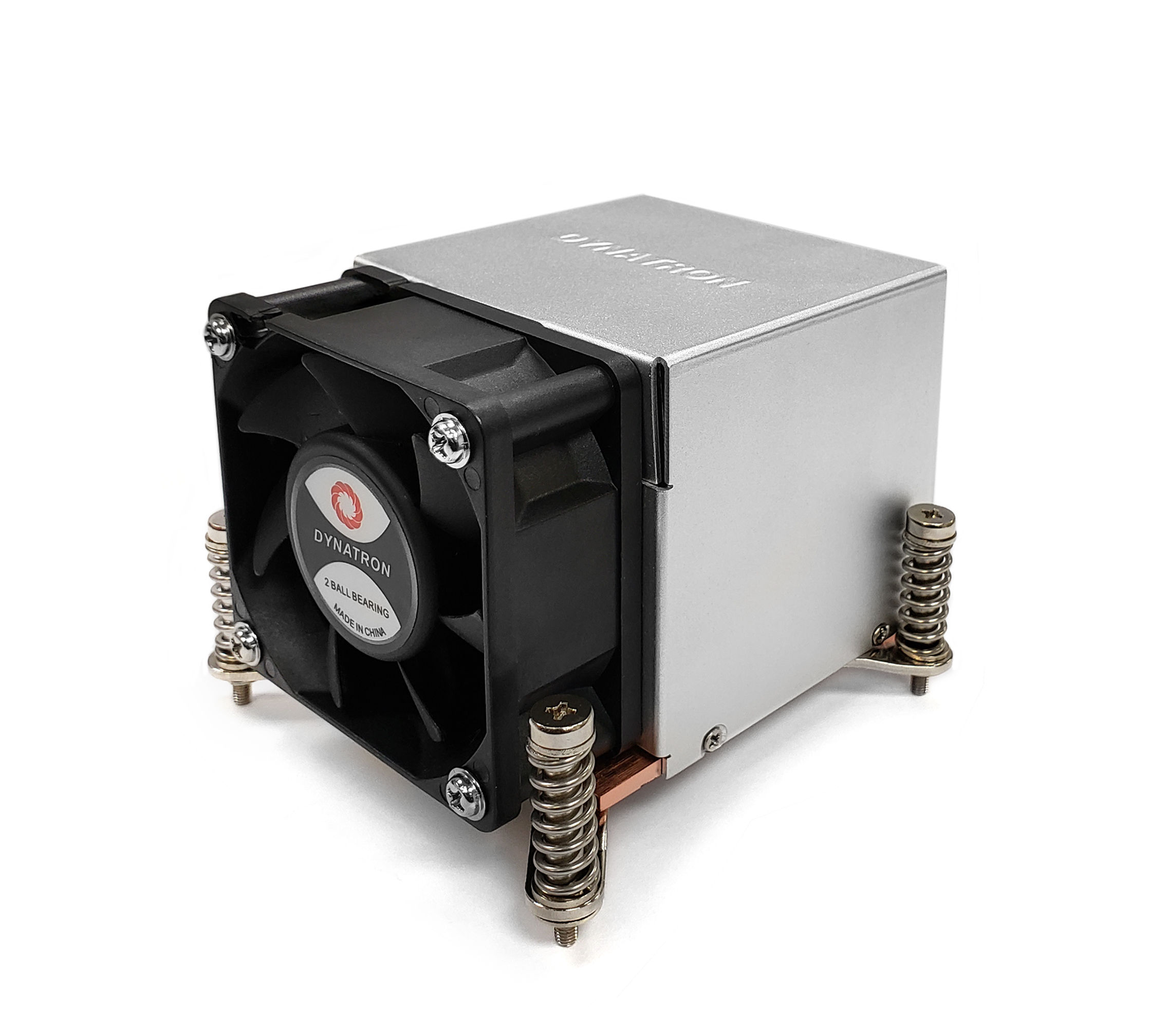

60 x 60 x 25mm fan with PWM function, Copper Base & Aluminum Fins. Support 125 Watts CPU Power Heat Dissipation for 2U&Up server solution.

CPU Support
CPU Socket
APPLICATION
  • Additional Information

    CPU Support

    Intel

    CPU Socket

    LGA 1151, LGA 1155, LGA 1156

    Weight

    460 g

    Material

    Copper Base with Aluminum Stacked Fin

    Solution

    2U Server and Up

    Dimensions

    88.5 x 87.0 x 64.0 mm

    Fan Dimension

    60 x 60 x 25 mm

    Rated Voltage

    12V

    Bearing

    2 Ball Bearing

    Speed

    At Duty Cycle 20%: 1400 RPM
    At Duty Cycle 50%: 3500 RPM
    At Duty Cycle 100%: 7000 RPM

    Power

    At Duty Cycle 20%: 0.6 W
    At Duty Cycle 50%: 1.20 W
    At Duty Cycle 100%: 5.4 W

    Air Flow

    At Duty Cycle 20%: 7.405 CFM
    At Duty Cycle 50%: 18.517 CFM
    At Duty Cycle 100%: 38.283 CFM

    Noise Level

    At Duty Cycle 20%: 20.8 dBA
    At Duty Cycle 50%: 35.9 dBA
    At Duty Cycle 100%: 48.1 dBA

    Air Pressure

    At Duty Cycle 20%: 0.574 mm-H2O
    At Duty Cycle 50%: 3.586 mm-H2O
    At Duty Cycle 100%: 13.552 mm-H2O

    Lead Wir Pin Out

    Pin1- (-)
    Pin2- (+)
    Pin3- (Techometer/Signal output)
    Pin4- (PWM)

    *All product specifications and product images are subject to change without notice.
