A14

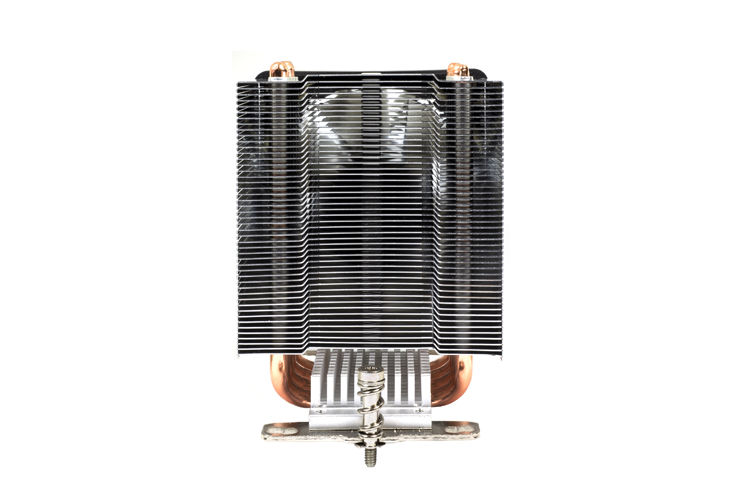

Recommend for AMD Processor, Socket G34. 80x80x38mm powerful fan with PWM function, HCC (Heatpipe Contact CPU) technology CPU cooler for 3U Server. Support CPU Power 140 Watts Heat Dissipation.

CPU Support
CPU Socket
APPLICATION
  • Additional Information

    CPU Support

    AMD

    CPU Socket

    G34

    Solution

    3U Server and up, Workstation

    Dimensions

    80 x 80 x 38 mm

    Weight

    550 g

    Material

    Aluminum Stacked Fin with Heat Pipes directly contact CPU

    Fan Dimension

    80 x 80 x 38 mm

    Speed

    At Duty Cycle 20%: 1000±10% RPM
    At Duty Cycle 50%: 2000±10% RPM
    At Duty Cycle 100%: 3800 RPM

    Bearing

    Double Ball

    Rated Voltage

    12V

    Power

    At Duty Cycle 20%: 2.2 W
    At Duty Cycle 50%: 3.6 W
    At Duty Cycle 100%: 7.9 W

    Air Flow

    At Duty Cycle 20%: 13.8 CFM
    At Duty Cycle 50%: 30.78 CFM
    At Duty Cycle 100%: 65.4 CFM

    Noise Level

    At Duty Cycle 20%: 16.0 dBA
    At Duty Cycle 50%: 31.5 dBA
    At Duty Cycle 100%: 43.4 dBA

    Air Pressure

    At Duty Cycle 20%: 0.420 mm-H2O
    At Duty Cycle 50%: 2.450 mm-H2O
    At Duty Cycle 100%: 9.750 mm-H2O

    Lead Wire Pin Out

    Pin1- (-)
    Pin2- (+)
    Pin3- (Techometer/Signal output)
    Pin4- (PWM)

    *All product specifications and product images are subject to change without notice.
