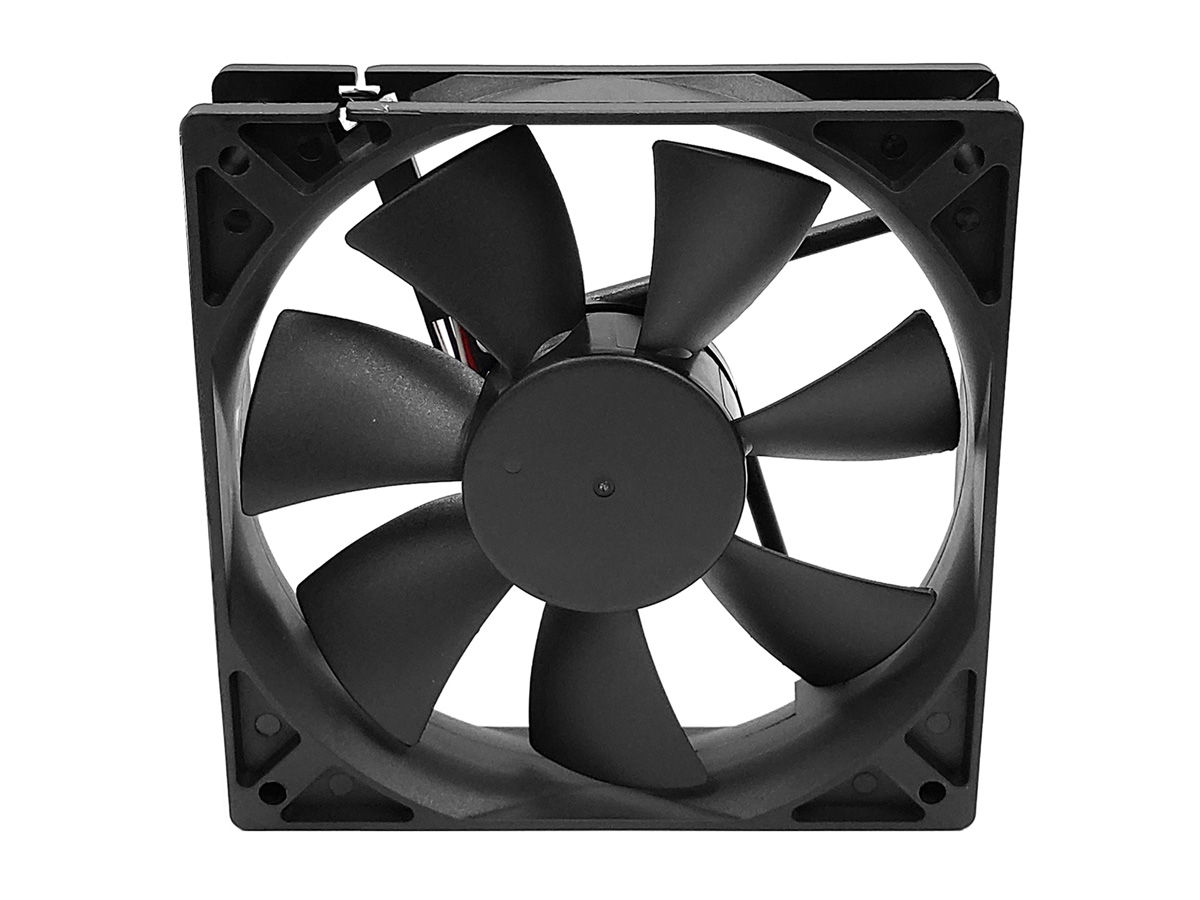

120 x 120 x 25 mm PWM Fan

120 X 120 X 25 mm PWM fan from 1000 rpm to 3600 rpm fan speed.

  • Additional Information

    Dimensions

    120 x 120 x 25 mm

    Frame

    PBT  UL94V-0 (Black)

    Impeller

    PBT  UL94V-0 (Black)

    Weight

    154 grams

    Operating Temparature

    – 10 °C ~ + 65 °C (65 %RH)

    Storage Temperature

    – 30 °C ~ + 70 °C (65 %RH)

    Notes

    (1) Available in Dual Ball Bearing
    (2) MTBF (Operating temp. 25°C or 77°F): Dual Ball Bearing: 50,000 hours

    *All product specifications and product images are subject to change without notice.

  • Variations

    Model No. DF1212025BU-PWM
    Voltage (V) 12
    Speed (RPM) 3600±10%
    Bearing 2-Balls
    Current (Amp) 0.66
    Watts (W) 7.92
    Air Flow (CFM) 132.9
    Static Pressure (mm/H2O) 9.2
    Noise (dBA) 49.5
  • Model Number System DF121225BU-D

    Voltage

    DC
    Voltage Range 12V
    Type Fan
    Size L*W*H (mm) 120*120*25
    Bearing System Dual Ball
    Speed High
    Connector 4 pin with 4 wires connector
    RoHS Compliance
